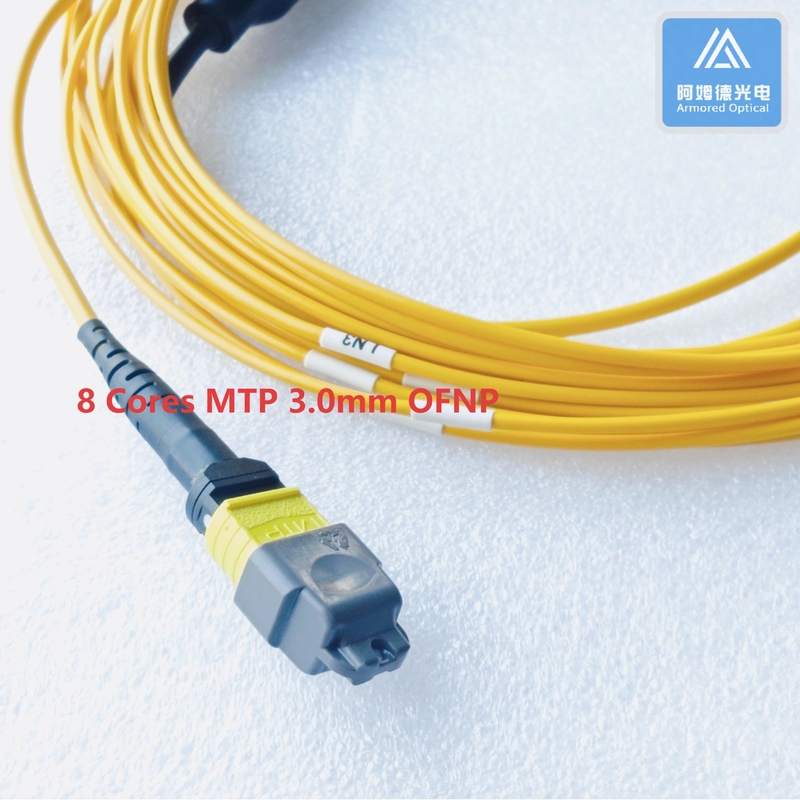

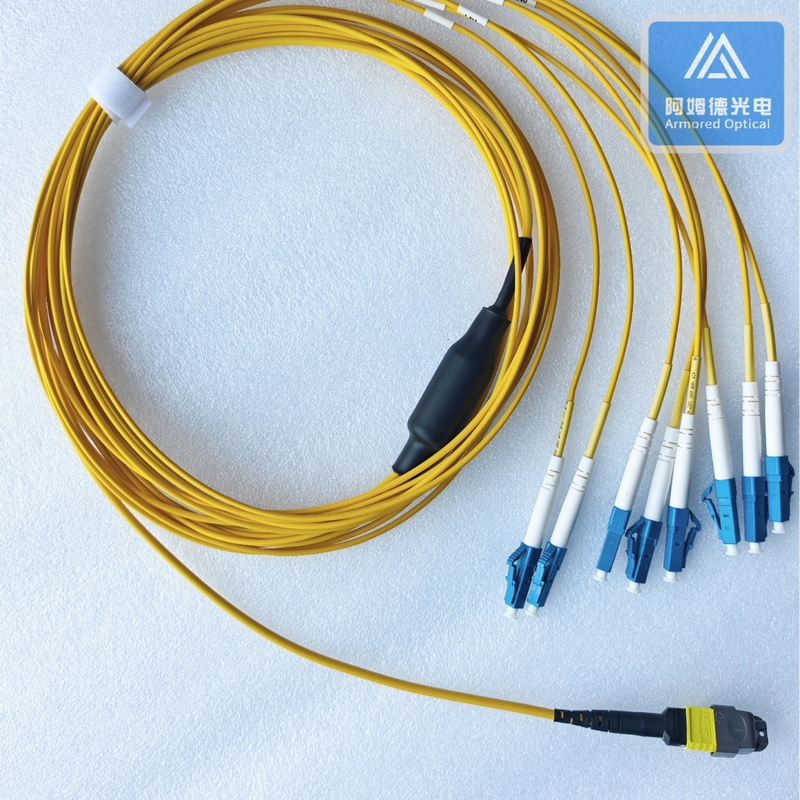

8 Cores SM Spiral Armored MTP-LC Fiber Patch 3.0mm OFNP Jacket Rodent Resistant

8 Cores SM Spiral Armored MTP-LC Fiber Patch 3.0mm OFNP Jacket Rodent Resistant

  • İsim
    8 Çekirdek Zırhlı MPO Yama Kablosu
  • Fiber modu
    G657A
  • Çap
    3.0 mm
  • Malzeme
    PVC-ONP
  • Renk
    Sarı
  • Kablo uzunluğu
    100m
  • Zırhlı Tüp
    Paslanmaz çelik
  • Uygulama
    Veri merkezi
  • Özellik
    Kemirgenlere karşı dayanıklı
  • Alev derecesi
    IEC60332-1-2
  • Menşe yeri
    Çin
  • Marka adı
    JIANGSU ARMORED
  • Sertifika
    ROHS
  • Model numarası
    8F-G657A-3.0-H-10m
  • Min sipariş miktarı
    1000M Kablo
  • Fiyat
    To Be Advised
  • Ambalaj bilgileri
    Plastik torbalar, Karton ve Palet. Deniz veya Hava yoluyla sevkiyat
  • Teslim süresi
    2 çalışma haftası
  • Yetenek temini
    Günde 500 Adet Konnektör

8 Cores SM Spiral Armored MTP-LC Fiber Patch 3.0mm OFNP Jacket Rodent Resistant



8F Spiral Armored MTP Patch Cord with 3.0mm Yellow PVC Jacket Rodent Resistant

Spiral Armored MPO Patch Jumper, Spiral Armored Cable Assembly  Datacenter



With stainless steel tube, armored fiber cables are resistant to physical damage, like crush, bending, and rodent animals bites.

Especially the armored fiber cable are applied for environment where cables are exposed to outdoor, This advantage is particularly obvious



Because with metallic tube inside, armored fiber cables and patch cords have a longer lifespan than common fiber cables and patch cords. Armoured fiber cable and patch cord are not easy to wear and tear, which can reduce maintenance costs.



Parameter

Item

Armored MTP patch cord

Fiber count 8F
Cable diameter 3.0mm
Cable jacket LSZH
Connector style MTP (Mala and Female)
Length 10M



8 Cores SM Spiral Armored MTP-LC Fiber Patch 3.0mm OFNP Jacket Rodent Resistant 0



8 Cores SM Spiral Armored MTP-LC Fiber Patch 3.0mm OFNP Jacket Rodent Resistant 1





Advantage

  • The spiral armoured cable is rodent-resistant, it’s couldn’t be destroyed by rodent animals. It has long product life.
  • Compare with normal fiber cable, spiral armoured cable maintain cost will be saved.
  • The spiral armoured cable with good tension and pressure performance.
  • The spiral armoured cable can be customized, eg. construct, size, color, material, printing, length, packing and so on., to meet different customers’ different requirement.



Service

  • 100% testing before shipment.
  • Good prices can be provided.
  • Our products can be customized according to customers’ requirement.
  • Different class materials can be provided. eg, CPR, UL, OFCR, IEC60332, etc.
